750 Assist Expanding Fitting

£14.10
In Stock
(0 Votes)

Add To Basket

Please correct the errors and try again.
:
*
:
*

Need some help?

If you are unsure what to buy, get in touch with us as we can advise on our full range of products.

Product Description

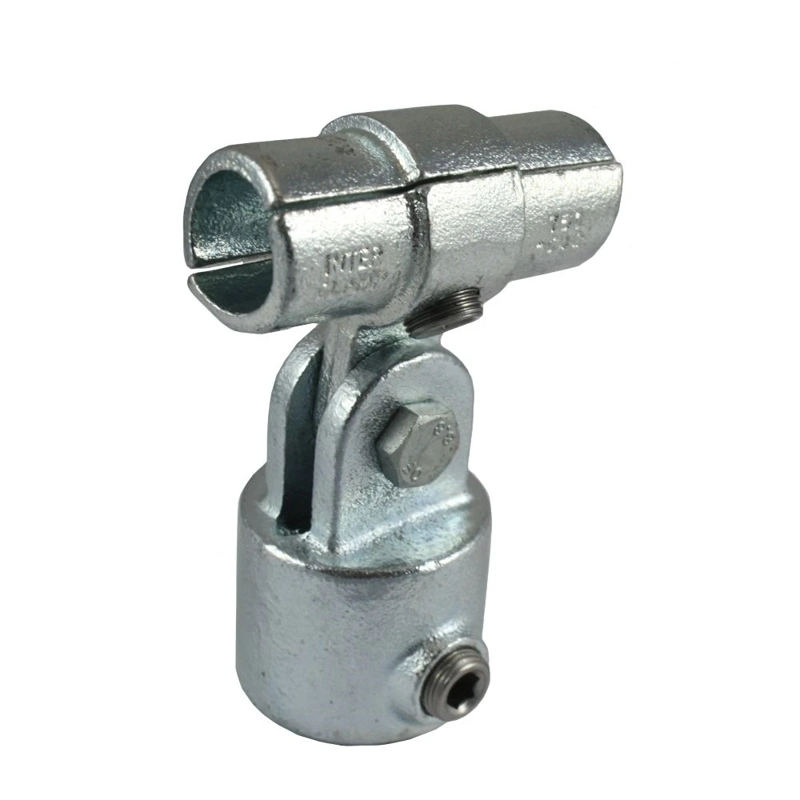

750 assist expanding fitting with male lug attached to a 173F swivel designed to attach a freestanding galvanised handrail to an upright at a variable angle.

The top section of the fitting expands into the galvanised handrail tube and is primarily used to join two lengths of handrail tube together. Where no joining of handrail tube is required look at the 751 fitting instead. The 173F female swivel fixes onto the top of the upright posts and in conjunction with the bolt and nut supplied you can adjust the horizontal rail to the desired angle.

The 750 fitting is supplied with the 750M top expanding bracket, 173F swivel female, and a bolt and nut unassembled.

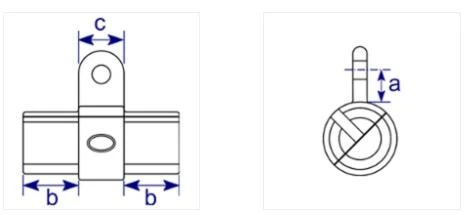

Diagram showing dimensions of DDA 750 Assist Expanding Fitting

Size a b c d e Weight Box Qty*
  mm mm mm mm mm (KG)
C42 25 32 25.4     0.97 30
D48           1.13 25
C42/D48           1.03 30

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

The Interclamp DDA Assist Range has been manufactured to meet with DDA specifications for Disability Handrails and Disabled Access Ramps, etc. Interclamp for handrail fittings, safety barriers, sports equipment, safety guardrails, fencing, playground equipment, shopfitting, racking, exhibition stands and pedestrian barriers and much more - see our image gallery.

Not sure which Interclamp fixings to use Call us on 01460 261213 - Email sales@fixingsandfittings.co.uk
