748 - Assist Rivet-On Swivel Bracket C42

£11.47
In Stock
(0 Votes)

Add To Basket

Please correct the errors and try again.
:
*

Need some help?

If you are unsure what to buy, get in touch with us as we can advise on our full range of products.

Product Description

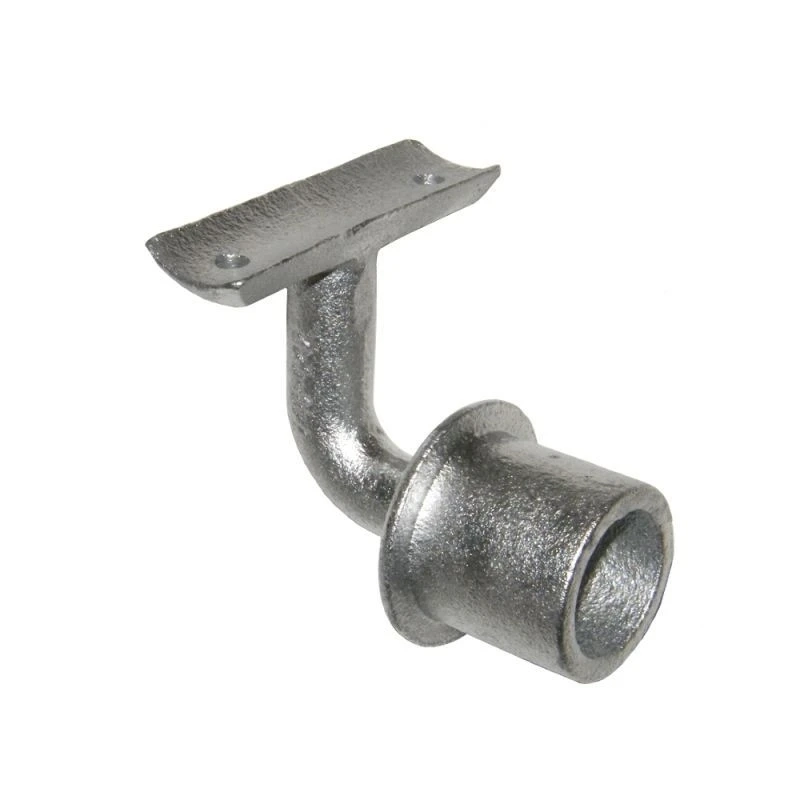

The Interclamp 748 Assist Rivet-On Internal Swivel Bracket is designed to attach handrail to an upright at any angle when used in conjunction with type 101 or 125 for a single rail or type 104 for a double rail. Rivets are supplied separately at extra cost. Although the saddles of rivet-on Assist fittings are primarily designed to fit snugly on C42 diameter tubes, they may also accommodate D48 tubes with a slight central gap when fitted.

Please note, however, that for relevant UK applications, D48 size handrails do not meet the dimensional requirements of the Disability Discrimination Act (DDA) regulations and Building Regulations Part M:2004.

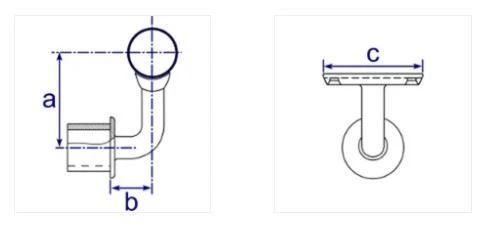

Diagram showing dimensions of DDA 748 Assist Rivet-on Swivel Bracket Fitting

Size a b c d e Weight Box Qty*
  mm mm mm mm mm (KG)
C42 80 38.5 90     0.51 60

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.



Not sure which Interclamp fixings to use Call us on 01460 261213 - Email sales@fixingsandfittings.co.uk

The Interclamp DDA Assist Range has been manufactured to meet with DDA specifications for Disability Handrails and Disabled Access Ramps, etc. Interclamp for handrail fittings, safety barriers, sports equipment, safety guardrails, fencing, playground equipment, shopfitting, racking, exhibition stands and pedestrian barriers and much more - see our image gallery.
