746 - Assist Rivet-On Wall Bracket C42

£13.52
In Stock
(1 Votes)

Add To Basket

Please correct the errors and try again.
:
*

Need some help?

If you are unsure what to buy, get in touch with us as we can advise on our full range of products.

Product Description

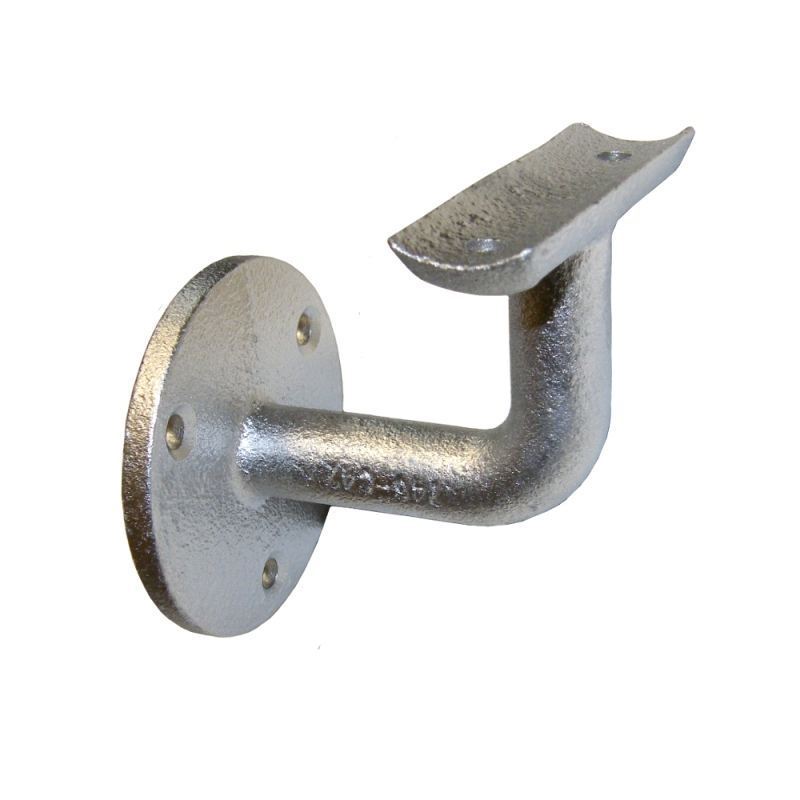

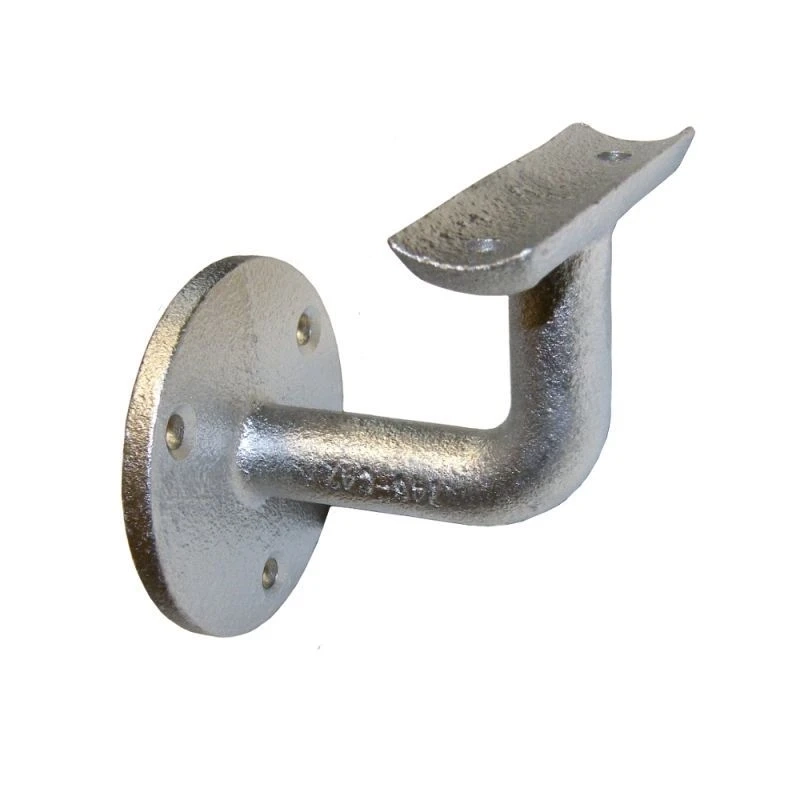

The 746 Assist Rivet-On Wall Bracket is designed to attach the handrail to a wall at any angle. Rivets are supplied separately at extra cost. Although the saddles of rivet-on Assist fittings are primarily designed to fit snugly on C42 diameter tubes, they may also accommodate D48 tubes with a slight central gap when fitted. Please note, however, that for relevant UK applications, D48 size handrails do not meet the dimensional requirements of the Disability Discrimination Act (DDA) regulations and Building Regulations Part M:2004.

Diagram showing dimensions of DDA 746 Assist Rivet-on Wall Bracket Fitting

Size a b c d e Weight Box Qty*
  mm mm mm mm mm (KG)
C42 80 76.5 90 ⌀63 ⌀81.5 0.63 50

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Not sure which Interclamp fixings to use Call us on 01460 261213 - Email sales@fixingsandfittings.co.uk

The Interclamp DDA Assist Range has been manufactured to meet with DDA specifications for Disability Handrails and Disabled Access Ramps, etc. Interclamp for handrail fittings, safety barriers, sports equipment, safety guardrails, fencing, playground equipment, shopfitting, racking, exhibition stands and pedestrian barriers and much more - see our image gallery.
