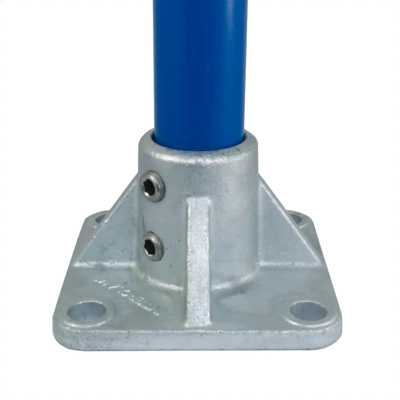

234 - 4 Hole Heavy Duty Baseplate D48
£38.00
Out of Stock
The Interclamp 234 is a 4-hole heavy duty base fitting, typically used to secure handrail posts/uprights to the ground on level sites and where applications require higher loadings.
Depending on the required loading Interclamp types 132 and 232 may be considered as alternative options.

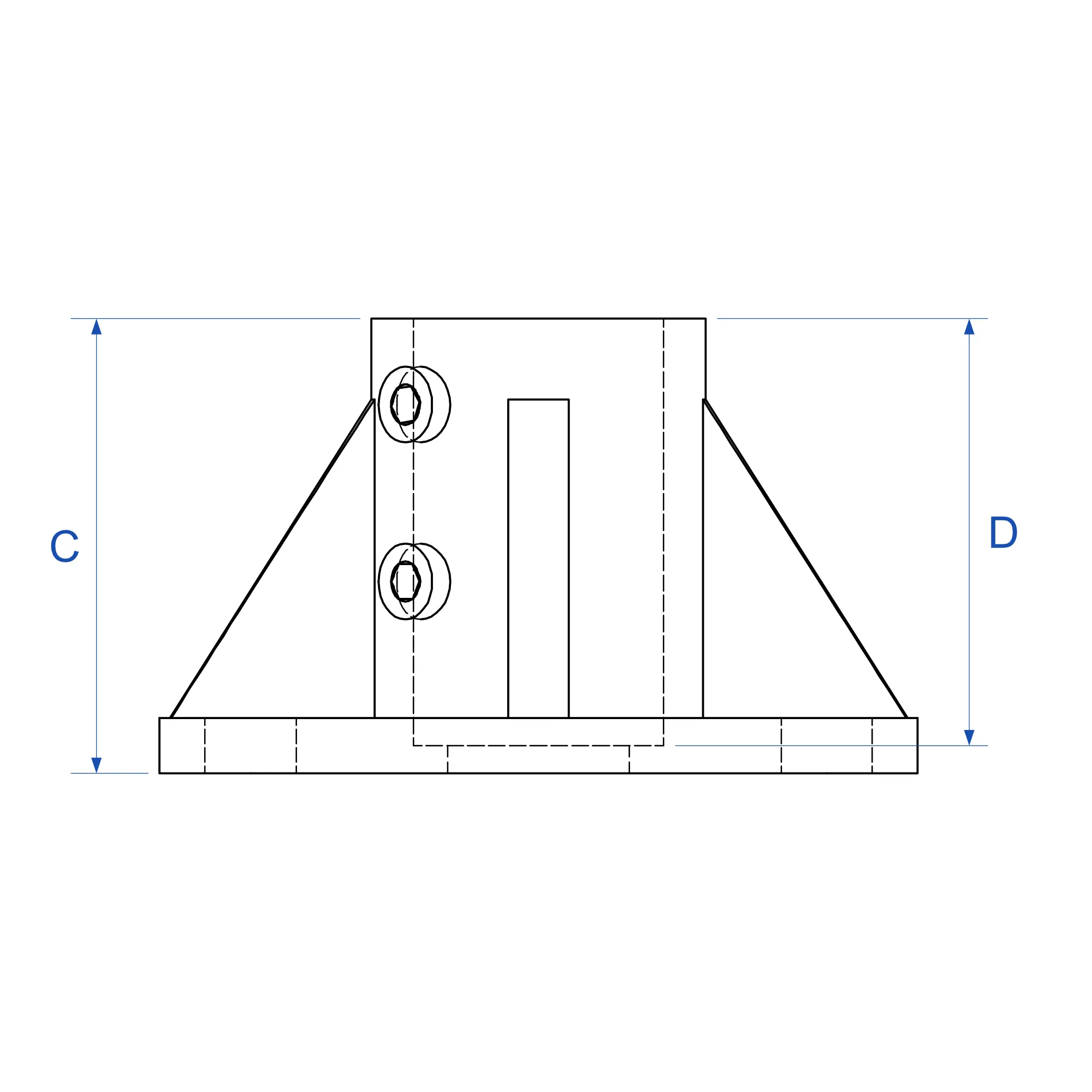

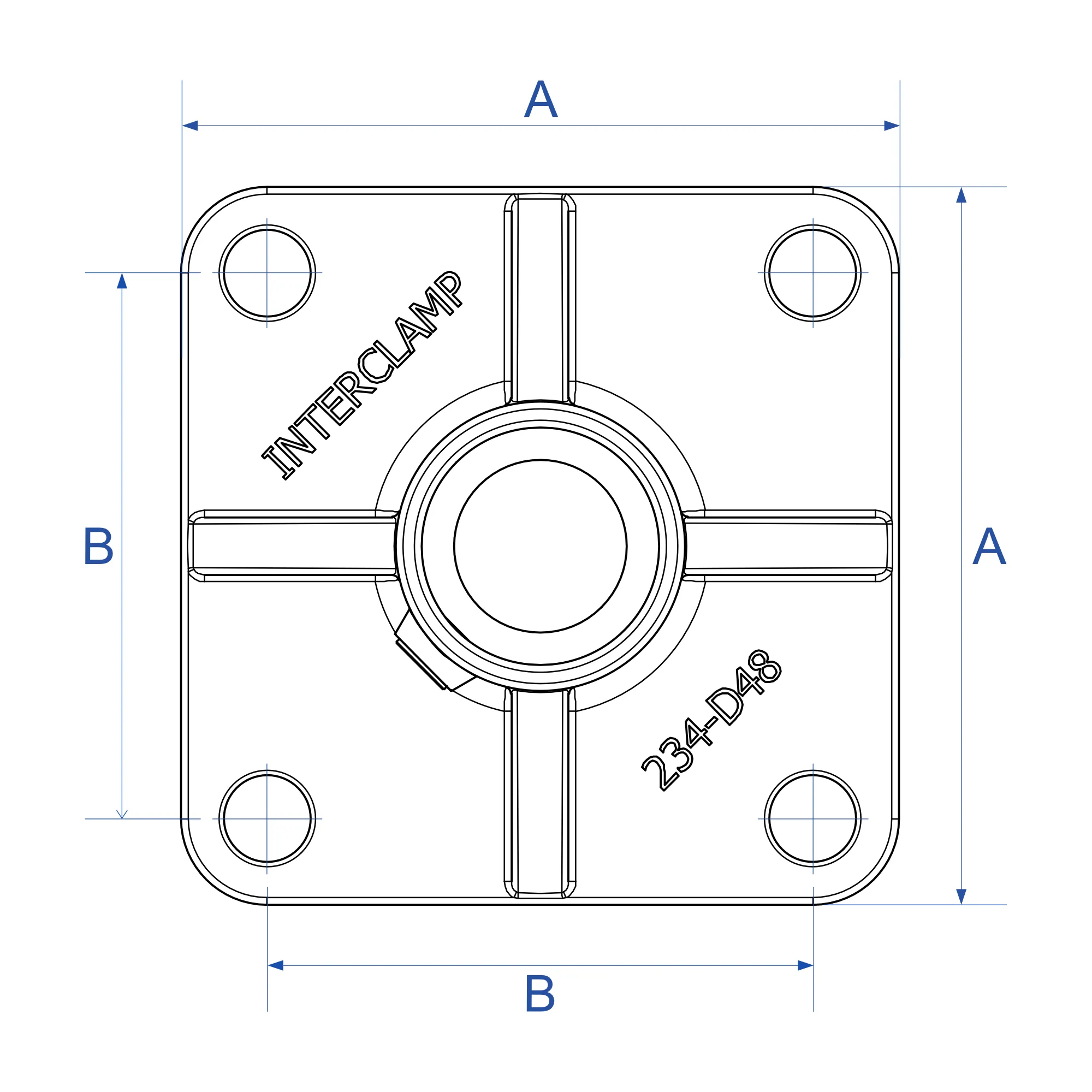

Dimensions
| Size | A (mm) | B (mm) | C (mm) | D (mm) | Weight (kg) | Box Qty* | Part No |
| D48 | 150 | 114 | 90 | 84.5 | 1.48 | 13 | 243-D48 |
Not sure which Interclamp fixings to use? Call us on 01460 261213.
