245 Heavy Duty Side Support
Add To Basket
Need some help?

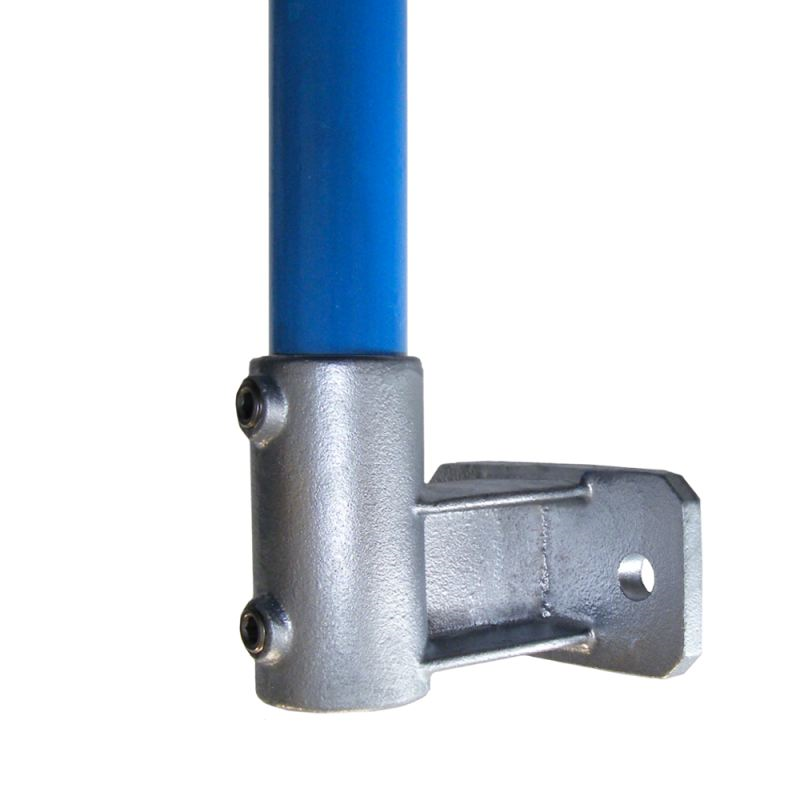

If you are unsure what to buy, get in touch with us as we can advise on our full range of products.The Interclamp 245 D48 Heavy Duty Side Support (Horizontal Base) is designed to be interchangeable with traditional welded ball standard bases, this fitting has an extended offset when compared with type 145. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. In standard form, the tube cannot pass through the bottom of the fitting, although the fitting may be modified to accommodate this at extra cost.

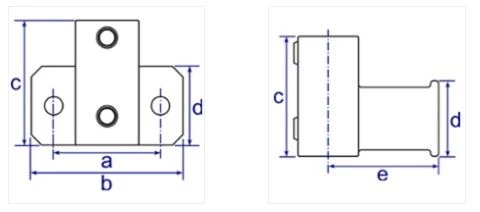

Size | a | b | c | d | e | Weight | Box Qty* |
mm | mm | mm | mm | mm | (KG) | ||
D48 | 102 | 145 | 119 | 75 | 110 | 1.96 | 8 |
* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.
Not sure which Interclamp fixings to use Call us on 01460 261213 - Email sales@fixingsandfittings.co.uk
Interclamp for handrail fittings, safety barriers, sports equipment, safety guardrails, fencing, playground equipment, shopfitting, racking, exhibition stands and pedestrian barriers and much more - see our image gallery.
