252 Slope Base Flange 11-29 degrees
Add To Basket
Need some help?

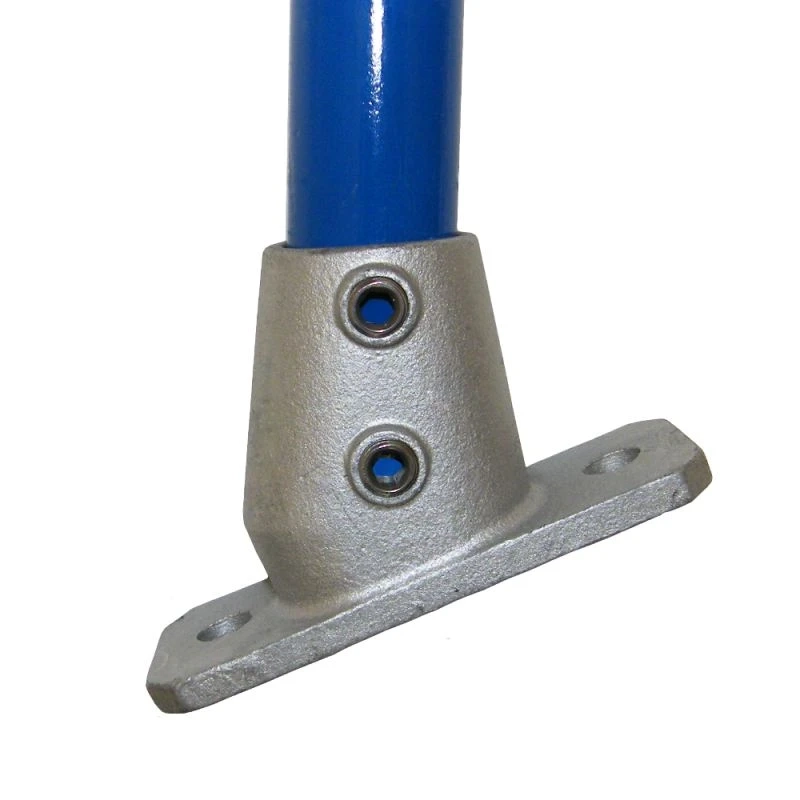

If you are unsure what to buy, get in touch with us as we can advise on our full range of products.The Interclamp 252 D48 Slope Base Flange (11°-29°) is a base flange for sloping sites, adjustable from 11° to 29°. As the fixing holes in the base cannot be fixed in line with the applied load, it is only intended for light loads or structures which are sufficiently supported by virtue of their design.
Where a greater load is required, type 132 is normally used, with the upright tube bent to the required angle. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. The dimensions of the base are designed to be compatible with many traditional welded ball standard bases to allows easy interchangeability.

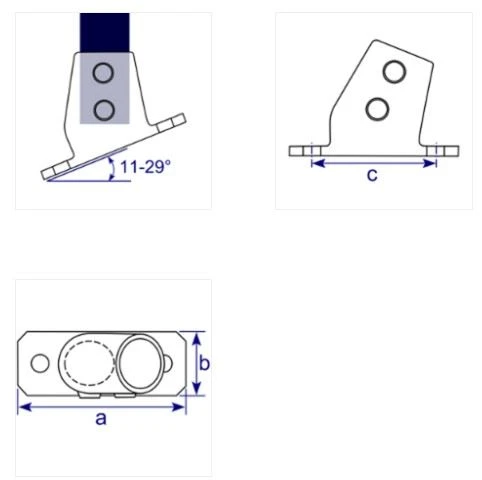

Size | a | b | c | d | e | Weight | Box Qty* |
mm | mm | mm | mm | mm | (KG) | ||
D48 | 172 | 65 | 126 | 1.47 | 20 |
* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.
