158 - Centre Cross (Self Colour)

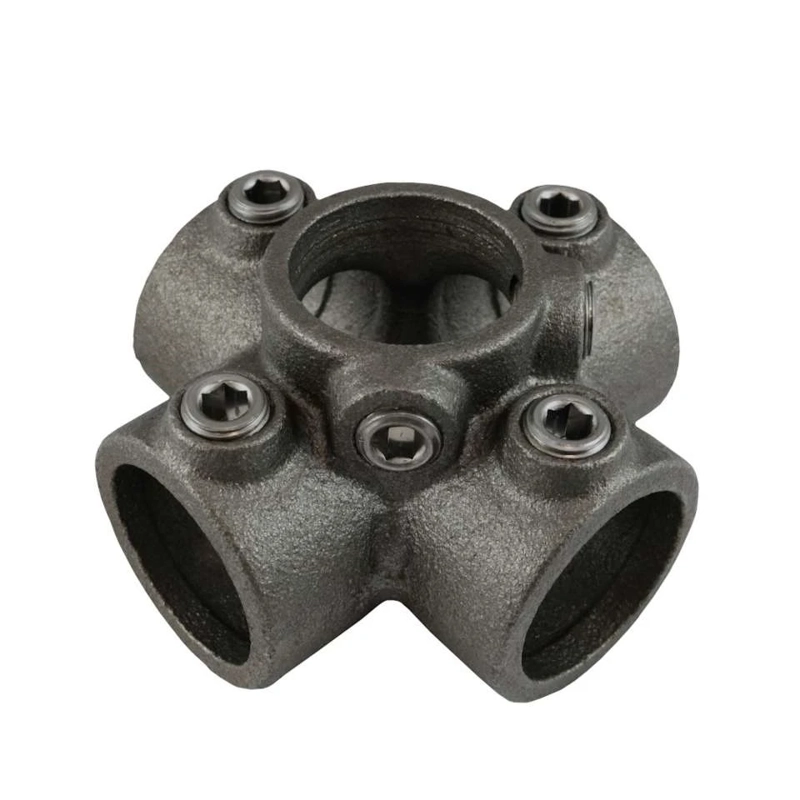

Interclamp's Centre Cross type 158 is a self-coloured fitting, designed to form a 90° joint between an upright tube passing through the fitting and four other tubes. This fitting is commonly used in the middle of larger structures such as self-contained play areas. The through tube (vertical in photo) cannot be joined within the fitting.

Please note that these fittings are bare metal and will be naturally prone to rusting unless a protective coating such as a lacquer is applied.

Dimensions

Size: B34

• a (mm): 46mm
• Weight (kg): 0.61
• Box Qty*: 30

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.

Not sure which Interclamp fixings to use? Please get in touch for assistance.
